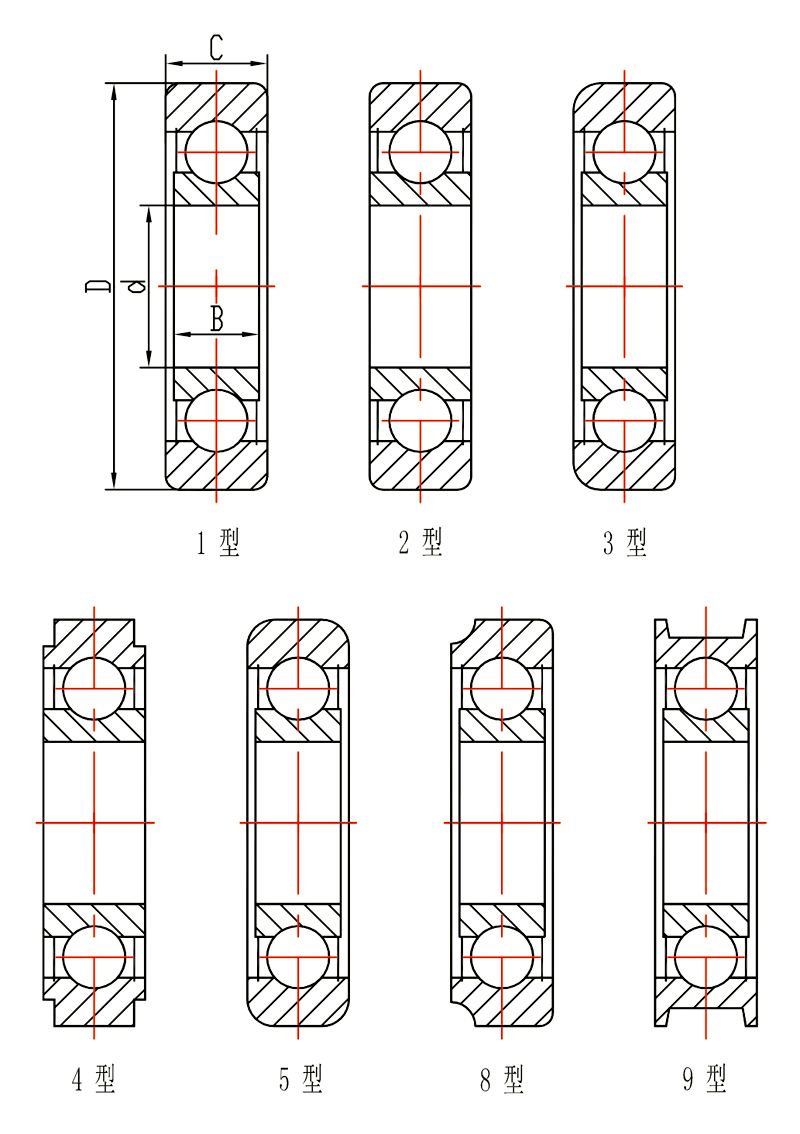

导轨轴承外形尺寸
轴承型号Bearing No. |
类型 |
尺寸 Dimension ( mm ) |
I |
Ⅱ |
Ⅲ |
IV |
Type |
d |
D |
C |
B |
205SZZ-29 |
|
|
|
2 |
25.40 |
57.15 |
18.12 |
14.00 |
206SZZ-16 |
|
MG206-2RS-1 |
|
1 |
30.00 |
76.20 |
28.58 |
16.00 | |
|
MG206FFA |
|
|
8 |
30.00 |
81.28 |
25.40 |
19.59 |
HG206MZZ-1 |
MG206FFH |
|
|
3 |
30.00 |
79.38 |
28.58 |
16.59 | |
|
MG206FFU |
|
|
3 |
30.00 |
81.00 |
29.00 |
16.59 | |
|
MG206FFUB |
|
|
3 |
30.00 |
82.00 |
29.00 |
16.59 | |
|
MG206FFP |
|
|
3 |
30.00 |
88.00 |
29.00 |
16.59 | |
|
MG206FFUA |
|
|
3 |
30.00 |
81.50 |
29.00 |
16.59 |
206MZZ |
|
|
|
3 |
30.00 |
86.36 |
28.58 |
16.59 |
207SZZ-20 |
|
|
|
4 |
35.00 |
70.36 |
17.00 |
17.00 |
207MZZ-1 |
MG207FFA |
|
X485RS |
1 |
35.00 |
81.86 |
27.10 |
17.00 | |
|
MG207FFB |
|
|
1 |
35.00 |
88.39 |
31.88 |
17.00 | |
|
MG207FFR |
|
|
2 |
35.00 |
88.39 |
31.75 |
17.00 |
208SZZ-9 |
|
|
|
3 |
35.00 |
101.75 |
30.16 |
21.00 | |
|
MG208FFA |
|
|
8 |
40.00 |
100.84 |
25.40 |
19.59 | |
|
MG208FFH |
|
|
3 |
40.00 |
95.00 |
28.58 |
21.00 | |
|
MG208FFR |
|
|
3 |
40.00 |
101.35 |
28.58 |
20.00 | |
|
MG208FFK |
|
|
3 |
40.00 |
101.35 |
28.58 |
21.00 |
209MZZ-1 |
MG209DD |
|
|
1 |
45.00 |
100.96 |
28.47 |
19.00 | |
|
MG209TLF |
|
|
9 |
40.00 |
123.00 |
36.00 |
19.00 | |
|
MG209TLF/2 |
|
|
3 |
40.00 |
109.00 |
30.00 |
23.00 | |
|
MG209TLF/3 |
|
|
9 |
40.00 |
108.00 |
36.00 |
19.00 |
210MZZ-1 |
|
|
|
2 |
50.80 |
103.28 |
32.54 |
32.54 |
210SZZ-2 |
|
|
|
1 |
|
101.09 |
27.00 |
27.00 |
305SZZ-3 |
MG305DD |
MG305-2RS-1 |
X421RS |
3 |
25.00 |
76.20 |
25.40 |
17.00 |
305SZZ-7 |
|
MG206-2RS-3 |
|
3 |
25.00 |
76.35 |
24.77 |
26.00 |
305SZZ-6 |
MG305DDA |
MG305-2RS-2 |
|
3 |
25.40 |
74.60 |
25.40 |
17.00 |
MG305TLF |
|
|
|
1 |
25.00 |
74.00 |
25.00 |
17.00 |
MG306DDB |
|
|
|
3 |
30.00 |
82.55 |
26.98 |
19.00 |
306SZZ-5 |
MG306DD |
MG306-2RS-1 |
X555RS |
3 |
30.00 |
88.90 |
25.40 |
19.00 |
307SZZ-9 |
MG307FFK |
|
X549RS |
3 |
35.00 |
94.62 |
25.40 |
21.00 |
307SZZ-14 |
|
MG307-2RS-5 |
|
3 |
35.00 |
101.35 |
28.58 |
21.00 |
307MZZ-2 |
MG307FFE |
|
|
8 |
35.00 |
101.35 |
28.58 |
21.00 |
308SZZ-8 |
|
|
|
1 |
35.00 |
100.76 |
36.51 |
21.00 | |
|
MG307FFB |
|
|
2 |
35.00 |
100.09 |
31.75 |
21.00 | |
|
MG307FF |
|
|
3 |
35.00 |
101.35 |
28.58 |
21.00 |
307SZZ-10 |
MG307FFH |
MG307-2RS-1 |
X376RS |
3 |
35.00 |
101.35 |
28.58 |
21.00 |
307SZZ-16 |
|
|
|
3 |
35.00 |
101.35 |
28.58 |
21.00 |
307SZZ-18 |
|
MG307-2RS-4 |
|
3 |
35.00 |
101.35 |
28.58 |
21.00 |
307MZZ-4 |
MG307FFA |
MG307-2RS-3 |
|
3 |
35.00 |
101.60 |
28.58 |
21.00 |
307SZZ-4 |
MG307FF4 |
|
|
3 |
35.00 |
101.60 |
30.16 |
21.00 | |
|
MG307FFM |
|
|
5 |
35.00 |
101.35 |
28.58 |
21.00 | |
|
MG307FFP |
|
|
5 |
35.00 |
101.33 |
28.45 |
21.00 |
308SZZ-4 |
|
|
|
9 |
40.00 |
100.08 |
25.58 |
23.00 |
308SZZ-5 |
MG308FFA |
MG308-2RS-1 |
|
3 |
40.00 |
113.94 |
31.75 |
23.00 |
308SZZ-6 |
MG308FFE |
|
|
3 |
40.00 |
114.20 |
28.19 |
23.00 | |
|
MG308FFH |
|
|
3 |
40.00 |
101.60 |
28.58 |
23.00 | |
|
MG308FFAD |
|
|
1 |
40.00 |
110.70 |
31.00 |
23.00 | |
|
MG308FFAB |
|
|
5 |
40.00 |
108.60 |
31.00 |
23.00 | |
|
MG308TLF |
|
|
5 |
40.00 |
115.00 |
30.00 |
24.00 | |
|
MG308TISP3 |
|
|
3 |
40.00 |
101.35 |
28.58 |
21.00 | |
|
MG308TISP4 |
|
|
3 |
40.00 |
101.98 |
28.58 |
21.00 |
309SZZ-4 |
MG309DDA |
MG309-2RS-1 |
X501RS |
3 |
45.00 |
127.06 |
31.75 |
25.00 |
309SZZ-5 |
|
MG309-2RS-3 |
|
3 |
45.00 |
127.06 |
31.75 |
27.00 |
309SZZ-9 |
|
|
|
3 |
45.00 |
127.06 |
31.75 |
25.00 |
309SZZ-1 |
|
MG309-2RS-2 |
|
5 |
45.00 |
128.22 |
31.75 |
25.00 | |
|
MG309XX1 |
|
|
5 |
45.00 |
114.00 |
35.00 |
25.00 | |
|
MG309XX2 |
|
|
5 |
45.00 |
115.00 |
35.00 |
25.00 | |
|
MG309DD |
|
|
5 |
45.00 |
128.22 |
31.75 |
25.00 | |
|
MG309DDB |
|
|
5 |
45.00 |
127.06 |
31.75 |
25.00 | |
|
MG39-3 |
|
|
3 |
45.00 |
115.00 |
35.00 |
25.00 | |
|
MG39-4 |
|
|
3 |
45.00 |
117.00 |
40.00 |
25.00 | |
|
MG39-5 |
|
|
1 |
45.00 |
119.72 |
29.00 |
25.00 | |
|
MG39-6 |
|
|
3 |
45.00 |
123.50 |
34.00 |
25.00 |
311SZZ-1 |
|
MG311-2RS-1 |
|
3 |
55.00 |
152.48 | 38.10 |
29.00 |
311SZZ-3 |
|
|
|
3 |
55.00 |
152.48 |
38.10 |
29.00 |
311SZZ-2 |
|
|
|
3 |
55.00 |
164.29 | 38.10 |
29.00 | |
|
MG311FFA |
|
|
3 |
55.00 |
159.89 | 38.10 |
29.00 |
